Intel® NUC 11 Pro Kit NUC11TNHv50L Intel® Core™ i5-1145G7 Processor

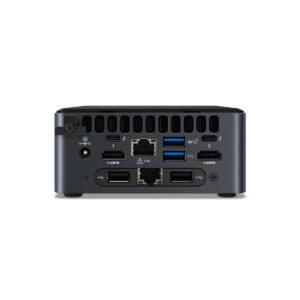

Intel® NUC 11 Pro Kit NUC11TNHv50L

Essentials

Product Collection,Intel® NUC Kit with 11th Generation Intel® Core™ Processors

Code Name,Products formerly Tiger Canyon

Status,Launched

Launch Date,Q1’21

Expected Discontinuance,1H’24

Supported Operating Systems,Windows 11 Home* |  Windows 11 Pro* |  Windows 10 Home |  64-bit* |  Windows 10 IoT Enterprise* |  Windows 10 Pro |  64-bit* |  Red Hat Linux* |  Ubuntu 20.04 LTS*

Board Number,NUC11TNBv5

Board Form Factor,UCFF (4″ x 4″)

Socket,Soldered-down BGA

Internal Drive Form Factor,M.2 and 2.5″ Drive

# of Internal Drives Supported,2

TDP,28 W

DC Input Voltage Supported,12-20 VDC

Processor Included,Intel® Core™ i5-1145G7 Processor (8M Cache |  up to 4.40 GHz |  with IPU)

Intel vPro® Platform Eligibility ‡,Yes

Total Cores,4

Total Threads,8

Lithography,10 nm SuperFin

Max Turbo Frequency,4.40 GHz

Supplemental Information

Embedded Options Available,No

Memory & Storage

Max Memory Size (dependent on memory type),64 GB

Memory Types,DDR4-3200 1.2V SO-DIMMs

Max # of Memory Channels,2

Max # of DIMMs,2

ECC Memory Supported   ‡,No

Processor Graphics

Integrated Graphics ‡,Yes

Graphics Output,Dual HDMI 2.0b w/HDMI CEC |  Dual DP 1.4a via Type C

# of Displays Supported ‡,4

Expansion Options

PCI Express Revision,Gen 4 (m.2 22×80 slot); Gen 3 (otherwise)

PCI Express Configurations ‡,PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1: M.2 22×30 (key E)

M.2 Card Slot (wireless),22×30 (E)

M.2 Card Slot (storage),22×80 NVMe (M)

I/O Specifications

# of USB Ports,4

USB Configuration,Front: 2x USB 3.2 Rear: 2x USB 4 (type C) |  1x USB 3.2 |  3x USB 2.0 Internal: 2x USB 2.0 (headers)

Total # of SATA Ports,1

Serial Port via Internal Header,Yes

Integrated LAN,Dual Intel® Ethernet Controller i225-LM

Integrated Wireless‡,Intel® Wi-Fi 6 AX201

Integrated Bluetooth,Yes

Additional Headers,Front_panel (PWR |  RST |  5V |  5Vsby |  3.3Vsby); Internal 2×2 power connector

# of Thunderbolt™ Ports,1x Thunderbolt™ 4 |  1x Thunderbolt™ 3

Package Specifications

Chassis Dimensions,117 x 112 x 54 [mm] (LxWxH)

Advanced Technologies

Intel® Optane™ Memory Supported ‡,No

Intel® Virtualization Technology for Directed I/O (VT-d) ‡,Yes

Intel vPro® Platform Eligibility ‡,Yes

Intel® ME Firmware Version,15

TPM,Yes

TPM Version,2.0

Intel® Virtualization Technology (VT-x) ‡,Yes

Security & Reliability

Intel vPro® Eligibility ‡,Intel vPro® Platform

Intel® AES New Instructions,Yes

Intel® Trusted Execution Technology ‡,Yes
