**ตัวเครื่องยังไม่รวม RAM,SSD สามารถสั่งซื้อเพิ่มกับทางร้านได้ RAM ของที่ร้าน มี IntelXMP Certified ใช้งานได้เต็มประสิทธิภาพ**
Type Mini-PC
Chipset System-on-Chip (SoC)
Socket N/A
CPU Intel Core i7-1370P, 6C+8c/20T, 1.90-5.20GHz, 24MB+20MB cache, 28-64W TDP (PBP/MTP), codename “Raptor Lake-P” (Raptor Cove + Gracemont, Intel 7)
RAM 2x DDR4 SO-DIMM, dual PC4-25600S/DDR4-3200, max. 64GB (UDIMM)
Hard drive 1x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/B-Key (PCIe 3.0 x1/SATA, 2242)
External slots N/A
Slots internal N/A
Graphics Intel Iris Xe Graphics (iGPU), 96EU/768SP, 1.50GHz, architecture “Gen 12.2” (Raptor Lake GT1)
GPU connections N/A

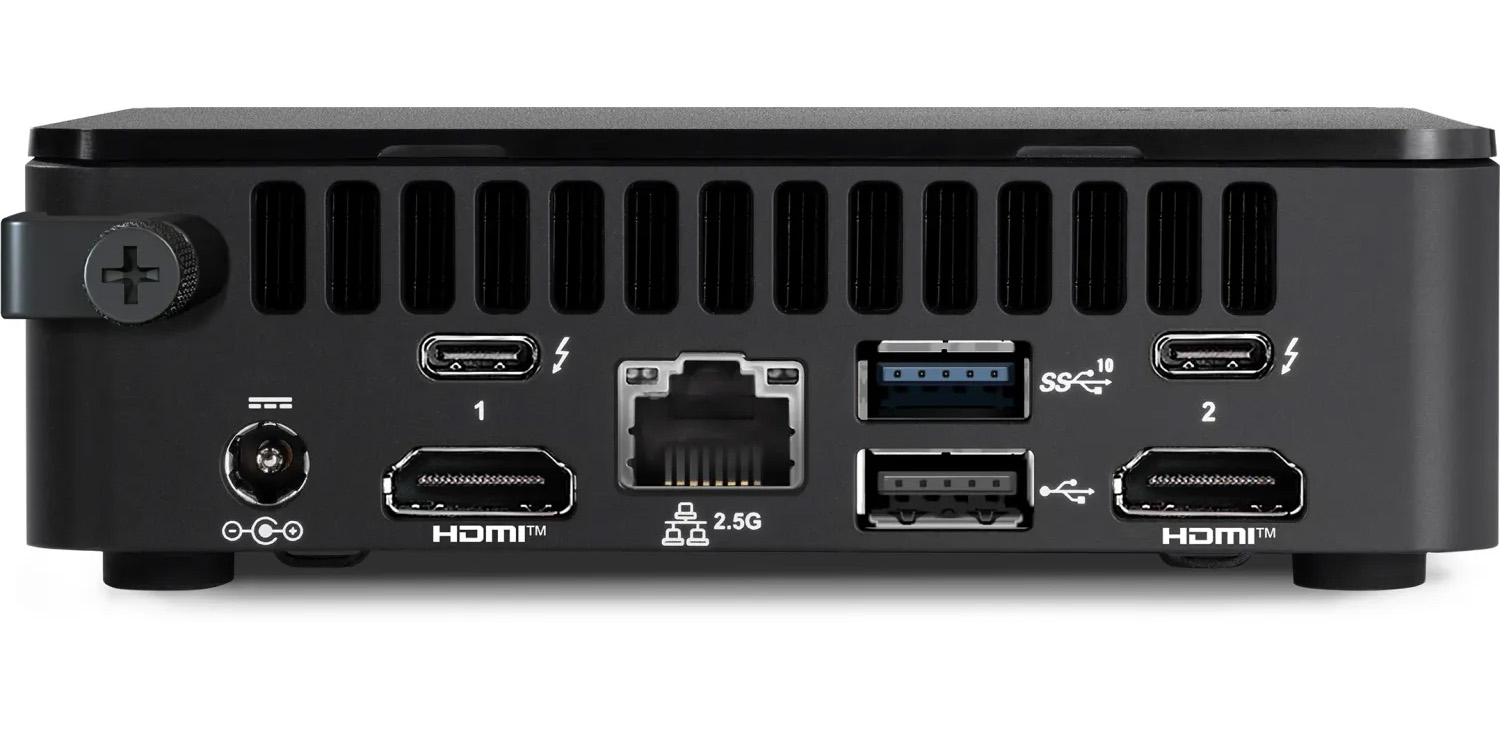

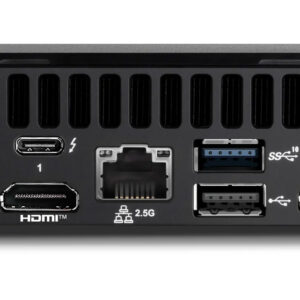

Rear connections 2x HDMI 2.1, 1x USB-A 3.1 (10Gb/s), 1x USB-A 2.0 (480Mb/s), 2x Thunderbolt 4 (40Gb/s), 1x RJ-45 2.5Gb LAN (Intel I226-LM), 1x hollow socket (power connection)

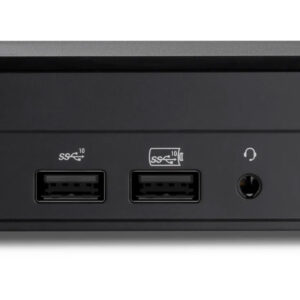

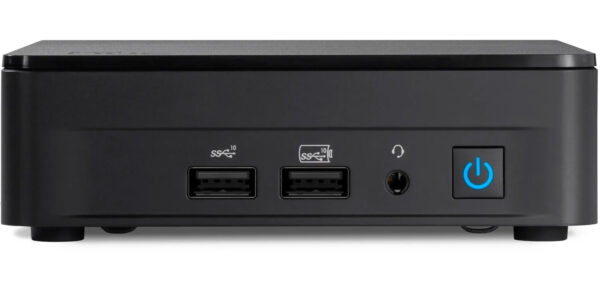

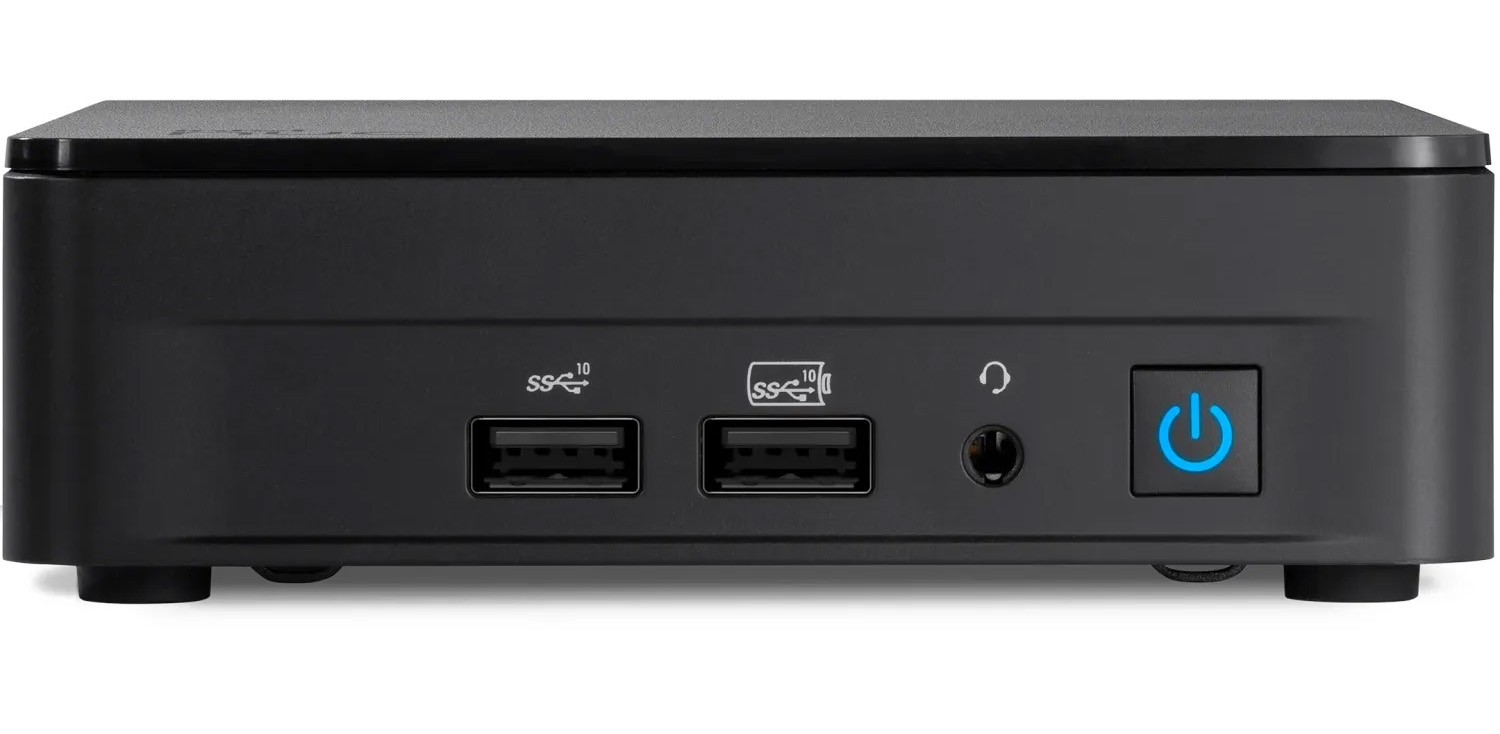

Front/side connections 1x USB-A 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s, BC), 1x 3.5mm jack
Expansion slots 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2×2, Intel AX211), Bluetooth 5.3
Card reader N/A
Power supply external, 1x hollow plug (120W/19V)
VESA mount 75×75/100×100 (included)
Dimensions (WxHxD) 117x37x112mm
Volume 0.5l
CPU cooler included
Special features Security lock (Kensington), 4x display support, suitable for continuous operation, Intel vPro, TPM 2.0
Manufacturer’s warranty three years
